MJM 36Z

Yanmar 6BY 260 HP 6 cyl diesels with ZT370 Sterndrives in lieu of Standard.

Volvo-Penta Joystick Control (Functions like IPS)

Standard 12v 150 amp alternators.

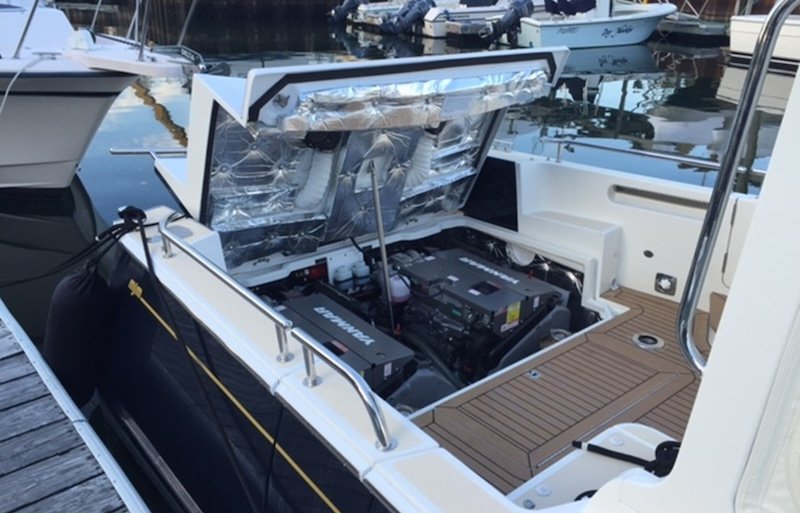

Engine-room access by means of an electronicallyelevated stern seat.

Digital engine display

UL approved fuel shutoff and fuel/air separators.

500 Series Racor fuel filters (2) with spare cartridges.

Two Interconnected, coated aluminum 100 gallon fuel tanks with Wema SUF standard fuel level sensors.

Parker 221FR fire resistant USCG Class 1 high-tensile, steel- wire-braid-reinforced, fuel hoses.

Stainless engine air intakes (2) under coamings.

Fiberglass drip pan below engines

Seafire automatic fire suppressant system in engine

Teak rimmed Edson 24″ destroyer wheel

Lenco electric trim-tabs with console control

Electrical panel with 25-12v DC breakers, stainless breaker guards and digital DC monitor and Blue Seas battery combiner

Cantalupi LED cabin reading lights (4).

Overhead LED lights

Courtesy lights (4) in cockpit, saloon and head.

Engine compartment light.

Stainless 12V outlets (3).

610-700-ampere hour absorbed battery capacity with 2 - Group 4D 200 AH house and 2- Group 31 105 AH engine-start batteries plus

Group 27 '90 AH generator- start with option.

Navigation and anchoring lights.

Bonded electrical system and underwater fittings w/galvanic isolator.

Field serviceable electrical system with bundled/numbered w/Deutsch O-ring waterproof connectors.

European 230W 50-cycle Shorepower

MarineAir16000 BTU Air Conditioning with Reverse Cycle Heat (w/ AC System)

Northern Lights 5KW M673D 1800 rpm, 3 Cyl Genset (w/AC) with Group 27 90 AH Start Battery in Cocoon

Lewmar electric windlass

Fusion Stereo System, Amplifier, 6 x Bose speakers

Television

Bi-level instrument console with gray anti-glare top surface for multi-function navigational display.

Ritchie SS-2000 4.5” flush-mount, high-performance, Supersport compass with movable sunshield.

Nav Station to port with 25x17 surface for Chart kit and/or laptop and 4″ deep drawer.

AFI Stainless Dual Trumpet Electric Horn

Raymarine E125 Hybrid Touch plotter w/integral WiFi for iPad and Navionics Platinum Plus XL chip.

350W Airmar Gemeco depth sensor with i70R multi-function display 36z Standard 2015 Specifications- March 2014

Raymarine 24” 4 KW HD color radar

Raymarine 218VHF with RAM at helm

Large wrap-around saloon lounge with 5” bolstered Ultraleather cushions.

Hull siding, forward bulkhead with bookshelves, storage shelves above berths and removable two-leaf saloon table.

Push latches on doors & drawers w/handles.

Gloss varnished teak & holly cabin sole.

Privacy pull shades & screens for ports and hatches.

Corian counter-tops.

Poly storage bins (2) under saloon settee.

Satin-finished cherry bureau & entertainment center.

Off-white, foam backed vinyl headliner & hull liner.

Head door, when open, serves as large dressing mirror.

Supplemental 8”x12” mirror in main saloon.

Hanging locker with outboard storage shelf.

Stainless double-hooks (3) for clothing

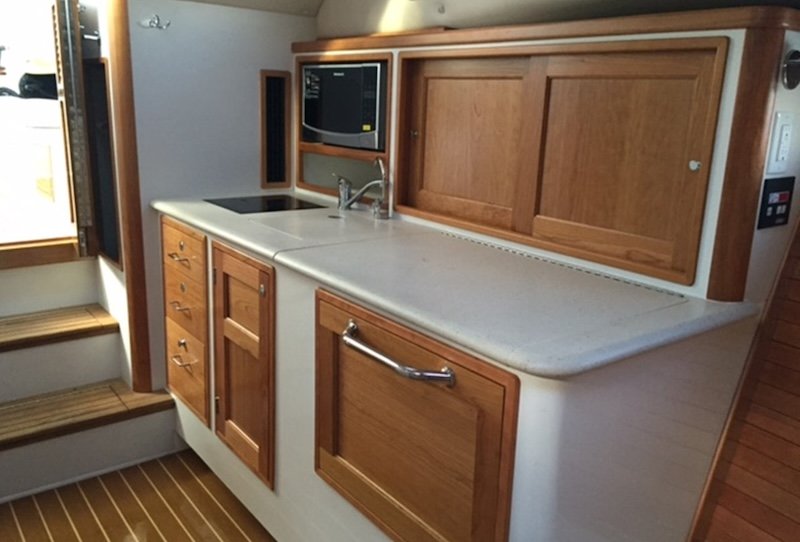

Enclosed head/shower

Teak companionway steps with tool storage.

Polished SS sink with removable Corian cover.

Drawers (3) for flatware w/Rubbermaid organizer, utensils & rolled goods

Ice box w/dividers, organizer baskets and drain to gray water sump. 12v Seafrost Refrigeration w/ 2 ice trays

General Ecology Seagull Water Purifier.

Princess Single Burner Ceramic Cooktop.

5-Way Microwave Oven

Sliding door storage cabinet with shelf.

Storage locker for pots/pans and cleaning supplies under sink. Flip panel to large Rubbermaid trash bin.

Overhead safety handrail and towel drying bar.

Double stainless hook for hotpads and dishtowel.

Pressure hot/cold water for galley 10-gal.

water heater

98-gal. fresh water tank.

Automatic electric bilge pumps in bow and amidships compartments

Dometic Vacuflush head system with 18 gallon holding tank

Back-up Bosworth high-capacity cockpit-operated manual bilge pump.

Centralized gray water discharge system through transom to minimize thru-hulls.

Gray water sump with strainer and clear inspection port for shower, icebox and AC condensate.

Marelon non-corrosive thru-hulls/seacocks with strainers and double-clamped hose connections.

Inlet for dock fresh water hose to use in lieu of boats pressure system when in a sling

Schenker Zen 50 water maker Capacity: 50 lit/h | Gal/h 13.2

Penske Board core in way of all thru bolted hardware and over-sized epoxy- laminated composite backing plates for all cleats and stanchions.

Hull to deck fused together as monocoque structure with cyano-acrylate adhesive.

Exceptionally strong, fully-molded (inside & out) and gelcoated windshield frame/posts with hardtop.

Cook “Armor Flex” off-white gelcoat deck w/sandtextured non-skid in buff or other color of choice.

Heavy-duty latch & retainer magnet on side-opening doors P&S.

Convertible pilothouse enclosed by StrataGlass windows window in aft entry door has combo window/screen

Dual fully-opening windshields with safety glass and electric wiper/washers.

Low-Back Admiral Recliner Piloting Seats on adjustable pedestal that lowers to allow chairs to swivel 360 degrees for living room setting.

Removable teak single-leaf dining table

Stainless 1-1/4” bow rail with ITT Jabsco 400,000 cp halogen spotlight and 16” teak burgee staff.

Muir windlass, polished stainless bow guard, bowroller, self-launching Lewmar claw anchor, chain/rode washer operable from helm.

Deck drains divert dirt/soot/dew/rain into gray water system and out transom…rather than onto topsides.

12″ custom 316L stainless custom bow cleats (2) and 10” side-deck and stern cleats (4) with matching bow chocks (2) having 22mm opening

316L Stainless 1” handrails (6 pairs)

Molded side-deck access steps (P&S) in cockpit.

Systems compartment w/hatch under pilothouse sole.

20”W x72”L x40”H pilothouse settee lockers P&S w/piston-activated lockable lids. Lockers have vinyl flooring and mesh storage bags .

Teak storage drawers (2) under piloting seats.

Pilothouse settees with UltraLeather cushions and backrests in color of choice.

Lewmar 20”x20” (2) hatches in saloon, 10”x10” (2) in galley and head and Lewmar 15”x20” (2) vent hatches in pilothouse with Ocean screen/shades.

4 opening cabin trunk portlights with screens/shades

Gloss-varnished teak bi-fold companionway door and 4- section hinged cover with brass combo lock.

Aft cockpit seat doubles as engine cover

Two aft facing cockpit seats with storage lockers and bottom cushions.

Drink holders (4)

3x5 American flag with teak staff and retainer pin.

Custom Armstrong swim ladder

Awlcraft 2000 color of choice w/3 coats clear for scratch/scuff repairs. Single boot & cove stripe.

Wet prepreg biaxial-knit E-glass & KEVLAR outer skin with Gougeon slow-set epoxy to a 60:40 ratio (glass to resin ratio) layered in the mold with CoreCell closed-cell foam core and vacuum-bagged to 2116 lbs per square foot to compress the laminate and eliminate air.

Solid unidirectional E-glass/epoxy GRP centerline keel/backbone with structural grid to minimize damage from grounding and to exceed CE Mark (ISO) structural standards for an Ocean Category A vessel.

Solid glass or high-compression Penske-Board coring with rebated outer/inner skin bonding in way of thru-hull fittings or thru-bolted hardware.

Name and Hailing Port on Transom (1 color vinyl)

Micron Extra Anti-Fouling Bottom Paint in color of choice or white gelcoat.

Access Doors to cockpit (Port & Starboard).

Transferable 10-year osmotic blister warranty.

Bilges, finished in easy-to-clean, gloss-white finish

PVC guardrail with high-polish stainless rub strip.

Large, tinted Lewmar through-hull opening ports in saloon w/screens and pull-down shades.

Molded quarter-guard with stainless steel rubstrake.

Swim Platform with Armstrong 37” Stainless Telescoping Ladder, Scandvik Hot/Cold Shower, Stainless Transom Grab Handle
